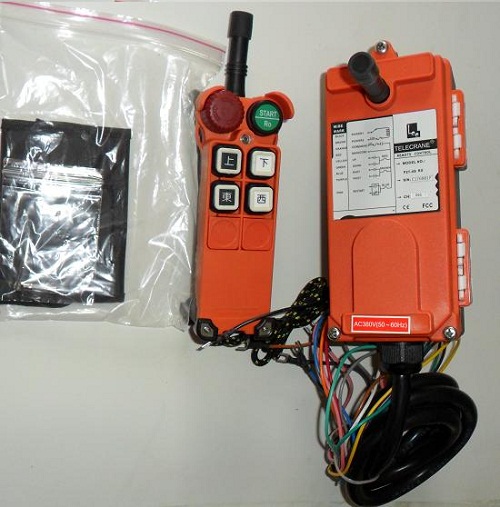

Taiwan TELECRANE Crane remote control F21-4S
Specifications: Transmitter Dimensions: 15.6 × 6.1 × 5.1 cm Weight: about 320 grams (with battery)
Receiver Dimensions: 18.5 × 8.5 × 8.5 cm Weight: about 550 grams (without cable)
Performance indicators:
Single-speed with four buttons, a total stop
Control up to 7 points
With battery voltage warning device, in low voltage own circuit.
Safety key switch to prevent unauthorized use.
Internal functions by computer interface setting
Up / down, east / west, north / south can be set as to whether mutual inhibition.
Spare a key can be set to boot, acceleration, flick jump, ordinary functions.
Control distance: up to 100 m
Security Code: 4300000000 kinds of factory and never repeat
Operating temperature: -35 鈩 to +80 鈩 (without regard to battery temperature)
Protection: IP65
Transmitter Power: DC 3V (two alkaline batteries can be used 4 months)
Receiver Power Supply: AC 36V/220V/380V choose, or AC and DC 12V
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
Standard configuration:
A transmitter (with strap)
Receiver 1
The receiver comes with 1 m connection cable
Operation and Maintenance Manual 1
For single hook Single-speed, two electric hoist and seven institutions following contacts with the wireless remote control of industrial equipment.
F21-4S output connector line
|
