F23-A + six-way (down Double-speed) Crane Remote Control
Taiwan TELECRANE remote control, Industrial remote control, crane remote control, remote control traffic

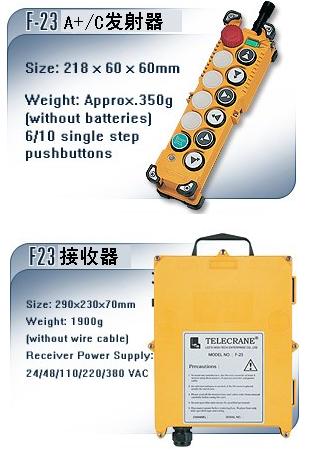

Transmitter (handheld)
Size: 21.8x6.0x6.0 cm
Weight: about 350 grams
Receiver
Dimensions: 29x23x7 cm
Weight: 1900 g
* 6 buttons (Up / Down Double-speed) +1 a start / alarm + mushroom head emergency stop
* Control up to 11 points
* With battery voltage warning device, when the voltage is less than its own circuit.
* Safety key switch to prevent unauthorized use.
* Up / down, east / west, north / south can be set as to whether mutual inhibition.
* Boot the computer is set to boot by Jian, acceleration, flick jump, ordinary functions.
* Unique dual motor mode: When the button is pressed a speed, a speed relay conduction; according to relay conduction velocity and speed relay is a trip (to slow the fast dual motor crane)
Control distance: up to 100 m
Security Code: 32 yuan (4.3 billion group)
Operating temperature: -35 鈩 to +80 鈩 (without regard to battery temperature)
Protection: IP65
Transmitter Power: DC 3V (two alkaline batteries can be used one month)
Receiver Power Supply: AC 380V/220V/48V choose, or DC 12V/24V
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
Standard configuration:
* Transmitter 1 (with strap)
* Receiver 1
* The receiver comes with waterproof connector (to be self-connection cable)
* Operation and Maintenance Manual 1
Applies to MD Double-speed electric hoist or just hook Double-speed driving and 10 contacts with the following industrial remote control.

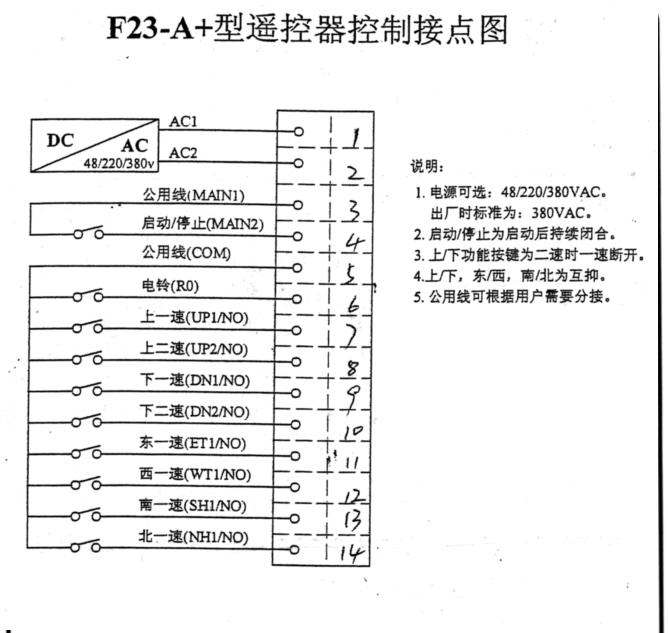

F23-A + wiring diagram
|
