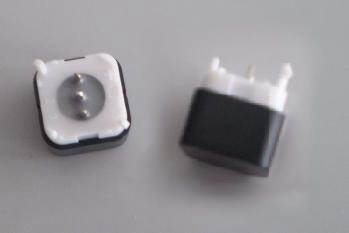

Taiwan TELECRANE Double-speed remote control buttons, Double-speed keys; two-stage button; two tranches of keys; Double-speed button; two tranches button.
Brands of imported brands and models key switch
Type key switches rated thermal current 30m (A)
Mechanical life 100 000 (times) UL product certification
Use of industrial products
Product Features:
- An optional single or dual normally open contact system, may have one or two operating positions.
- Access to reliable, pressing the action of excellence.
- Can be used directly or indirectly pressed.
- Contact system seal design.
Typical applications:
- Instrumentation.
- Industrial controller.
- Musical equipment.
- Construction machinery and equipment ...
Specifications:
- 30mA, 28V
- The pressing force 5-7N (working position 1), 11-14N (working position 2)
- Life 1E5/2E4
- Contact gap <3 mm.
- Ambient temperature: -40 ~ 85 鈩
Two-stage operation, the three pin, a key stroke is divided into two, with the first stroke of the 1st foot common pin conduction, with the second stroke of the 1st foot common pin, pin 2 simultaneously.Dimensions 12 * 12 * 10mm, pin pitch 2.5mm.
Applicable to Taiwan TELECRANE: F23-D, F24-8D, F24-10D, F24-12D and other models Double-speed remote control.
|
